IKO International has unveiled its new TZ series precision elevating table. As semiconductors and optical components become smaller and more sophisticated, the TZ series provides the exceptional vertical positioning accuracy their manufacturing processes demand — all in a compact size.

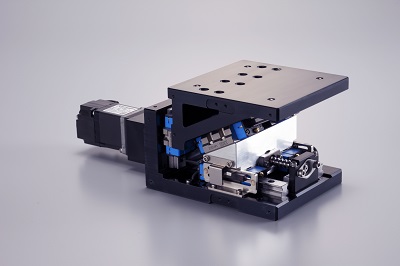

The elevating table features a unique wedge mechanism guided in the vertical direction by a pair of IKO C-Lube Super MX linear motion rolling guides arranged in parallel to achieve highly precise positioning with exceptional rigidity. An optional linear encoder provides full closed loop control to achieve positioningSource: IKO InternationalSource: IKO International accuracy as high as 0.005 millimeter, with repeatability of ±0.001 millimeter. Limit, origin and pre-origin sensors are integrated into the standard version to save space and simplify mounting.

The integrated Super MX linear motion rolling guides come with built-in IKO C-Lube capillary systems, supplying lubricating oil to allow maintenance-free operation for five years or 20,000 kilometers.

Additional features and specs include:

  • A choice of two table dimensions: 120 square millimeters and 200 square millimeters
  • Wedge reduction ratios of 1:2 and 1:4 to allow an ideal stroke length and resolution for the application
  • Vertical stroke of up to 24 millimeters
  • Precision ball screw drive
  • Durable aluminum construction

For applications requiring XYZ-axis positioning, TZ elevating tables can be combined with an IKO CT series positioning table.
